# スキーマ定義

## json**概要**

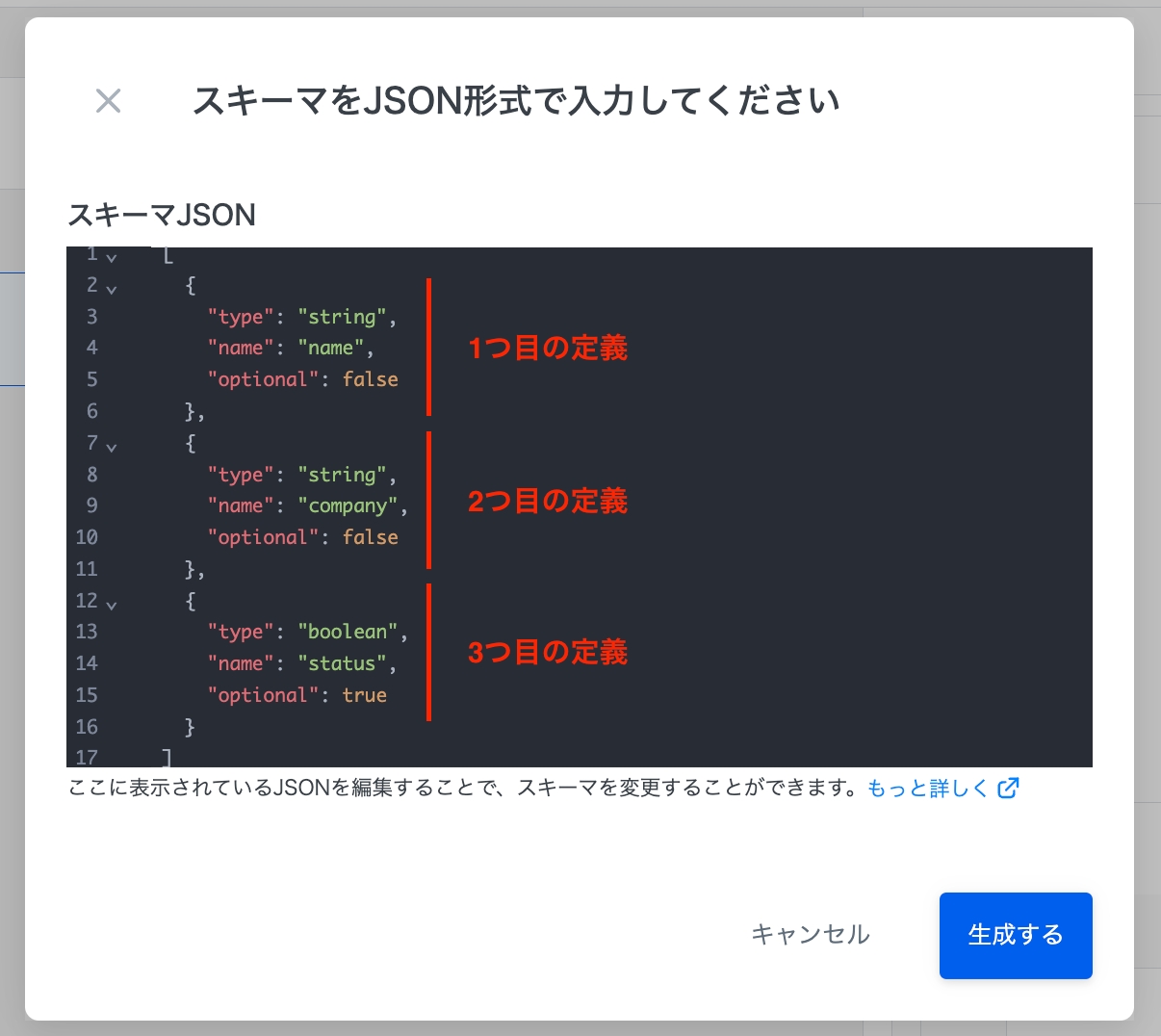

スキーマJSONのモーダルでは、以下の様に各スキーマ定義を配列にまとめて一度に設定することができます。

```json
[
  {スキーマ定義},
  {スキーマ定義},
  {スキーマ定義}
]
```

<figure><img src="https://files.readme.io/6453a6f-image.png" alt=""><figcaption></figcaption></figure>

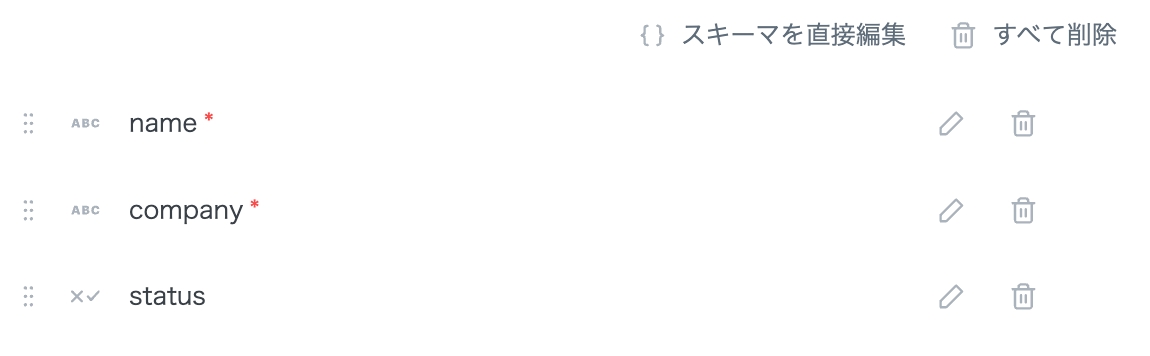

上記を入力して「生成する」を実施すると、3つの項目が生成されます。

<figure><img src="https://files.readme.io/438cf65-image.png" alt=""><figcaption></figcaption></figure>

1. string型でnameという名称の必須入力の項目

```json
{
    "type": "string",
    "name": "name",
    "optional": false
}
```

<br>

2. string型でcompanyという名称の必須入力の項目

```json
{
    "type": "string",
    "name": "company",
    "optional": false
}
```

<br>

3. boolean型でstatusという名称の任意入力の項目

```json
{
  "type": "boolean",json
  "name": "status",
  "optional": true
}
```

***

## **json仕様**

<table><thead><tr><th width="122.28515625">キー</th><th>値</th></tr></thead><tbody><tr><td>type</td><td>スキーマの型を指定します。型は以下から選択します。<br><code>string</code> , <code>boolean</code> , <code>integer</code>, <code>decimal</code>, <code>date</code> , <code>datetime</code>, <code>array</code>, <code>object</code></td></tr><tr><td>name</td><td>任意の名称を指定します。</td></tr><tr><td>optional</td><td>入力を任意にする場合はtrueを、必須の場合はfalseを指定します。</td></tr><tr><td>element</td><td><code>array</code>型の場合に使用します。<br>配列は、共通のスキーマを持つ複数の要素から構成されるため、その共通のスキーマを1つ定義します。</td></tr><tr><td>properties</td><td><code>object</code>型の場合に使用します。<br>オブジェクトは、複数のスキーマを持つ1つの要素のため、複数のスキーマを配列でまとめて定義します。</td></tr></tbody></table>

型ごとに仕様が決まっています。

`string` , `boolean` , `integer`, `decimal`, `date` , `datetime` の場合

```json
{
  type: "string" | "boolean" | "integer" | "decimal" | "date" | "datetime",
  name: "任意の名称",
  optional: true | false
}
```

`array` の場合

```json
{
  type: "array",
  name: "任意の名称",
  optional: true | false,
  element: Schema | null
}
```

`object` の場合

```json
{
  type: "object",
  name: "任意の名称",
  optional: true | false,
  properties: Schema[]
}
```


---
